10 Things on Your Checklist for Analyzing an Experiment
This guide will provide practical tools on what to do with your data once you’ve run an experiment. This guide is geared towards anyone involved in the life cycle of an experimental project: from analysts to implementers to project managers. If you’re not the one directly involved in analyzing the data, these are some key things to look for in reports of analysis of experimental data. If you are analyzing the data, this guide provides instructions and R code on how to do so.
1 BEFORE seeing (or receiving) your data, file an amendment if changes to the design or planned analysis arise
Before you look at the data, back up and ask yourself: what changed from what I had planned and pre-registered - in terms of both design and analysis - and what are the consequences of those changes for the accuracy of my pre-analysis plan? If you think changes to the PAP are required, then you can file an amendment to the PAP at the registry where you initially pre-registered your experiment. It’s good to do this prior to even receiving the data, if possible. To read more on PAPs, see 10 Things to Know About Pre-Analysis Plans.
Things can change from conception to implementation. Perhaps you had planned to randomize at the individual-level, but instead you end up having to conduct a cluster randomization. Alternatively, did an event happen that cut your study short, reducing your sample size? Both of these design changes would have implications for how you should analyze the data. In the first instance, you should file an amendment reflecting the cluster-randomization and corresponding changes to your analyses. In the second instance, you may consider the implications for your reduced sample size for power, and whether or not you need to change your main specification (perhaps by adding covariates, or focusing on a main effect rather than an interaction effect) in order to be powered enough to detect effects should they exist.
2 # Treatment variable: Confirm its randomization
First things first, it is important to verify that your treatment was successfully randomized according to what you’d planned in your design. Randomization plays a key role in the fundamentals of experimental design and analysis, so it’s key that you (and others) can verify that your treatment was assigned randomly in the way that you planned. Without this, it’s hard for the research community and policymakers to have confidence in your inferences.
First, you should trace back to the code or software that was responsible for generating the randomization. If this was done in Qualtrics or on SurveyCTO, this would involve going back to the original software and ensuring that the particular survey module was coded correctly. If you worked with a provider to code up your online survey, you could schedule a meeting with them to walk through verifying the coding of the randomization. If this was done in R, there should be at least 2 lines of code: one that set a seed so that the randomization would be reproducible, and another that actually randomizes the treatment assignment. Note that the second line of code depends on the type of randomization you’d conducted (see 10 Things You Need to Know About Randomization).
3 # Variable inspection: Locating and understanding your data variables
In addition to verifying that the treatment was correctly assigned in the software that you used, it’s important to verify what the treatment variable in your data set - produced by the code or software - actually means. This means checking that values of the treatment assignment variable correspond to the values assigned in the randomization process in R or in the software used to assign treatment. Does a 1 produced by the software correspond to treatment, and 0 to control? For a three-arm experiment, softwares like SurveyCTO may produces values 1, 2, and 3 for the treatment assignment variable. It’s crucial that analysts verify that what they think they’re analyzing corresponds to the actual treatment assigned.
If you are in a context where non-compliance with treatment is possible, you should also inspect the variable that indicates treatment receipt. In a field experiment, if a subject was assigned to a skills training (treatment assignment = 1), did they actually attend and receive the intended information on skills (treatment receipt = 1)? In a survey experiment, did a subject assigned to receive watch a video to provoke positive emotions (treatment assignment = 1) actually report watching the video and internalizing its content (treatment receipt = 1)? A variable that indicates whether a subject actually received the treatment it was assigned to is key for thinking about things like complier average causal effects (see 10 Things You Need to Know About the Local Average Treatment Effect). Understanding what the treatment receipt variable means, and what each of its values corresponds to (does 1 correspond to treatment receipt, and 0 to lack of receipt?), is crucial.
It’s also useful to inspect the outcome and covariate variables that you plan on using in your analysis. This might include renaming them for easier coding and interpretation of your analysis code. If someone looks at your analysis code, it is generally easier for them to understand what a variable called “gender” means, rather than if it is called “question_26_c_1”. In addition, making sure that missing data are consistently coded with “NA” rather than a numeric value is important to ensure the integrity of data analysis. Sometimes, survey software may code missing data with 0 or 888; if you do not change these values to “NAs”, your data analysis will think that they correspond to numeric values of the variable of interest. If you have covariates that are missing, though this need not bias your estimation of the impact of the treatment, there are several ways you may go about addressing this missingness; for more on this, see 10 Things to Know About Missing Data.
4 # Did treatment assignment go according to plan?
It’s generally good practice to inspect whether or not your treatment assignment did in fact work in accordance with your expectations, depending on the design. This is separate from verifying the code or software that produced the randomization, as in 1 above. Instead, you can check the distribution of the values of treatment assignment; you should see whether it corresponds to what you’d designed (see 10 Things You Need to Know About Randomization).
For example, if you conducted a complete randomization where 25 experimental subjects were to be assigned to control, and 25 to treatment, did this play out in practice? You can run a simple cross-tabulation of the treatment assignment variable, and observe whether or not this is the case. Alternatively, if you conducted a block randomization by gender and wanted to assign half of women to treatment and the other half to control (and the same for men), you can look at the distribution of treatment assignment values by gender. Though uncommon in field experimental design where complete randomization prevails, some survey experimental software conducts simple randomization. In a survey experiment with two arms, the software will assign each respondent to treatment or control by flipping a Bernoulli coin that has a 50 percent chance of landing on heads (treatment), and a 50 percent chance of landing on tails (control).1 In this case, it’s okay if exactly 50 percent of your respondents don’t end up in treatment - we’d expect some variability due to the nature of the randomization. However, the percentage of units treated shouldn’t be too far from 50 percent - this would induce doubt that the randomization actually worked.
5 # Checking outcome and covariate variables for outliers

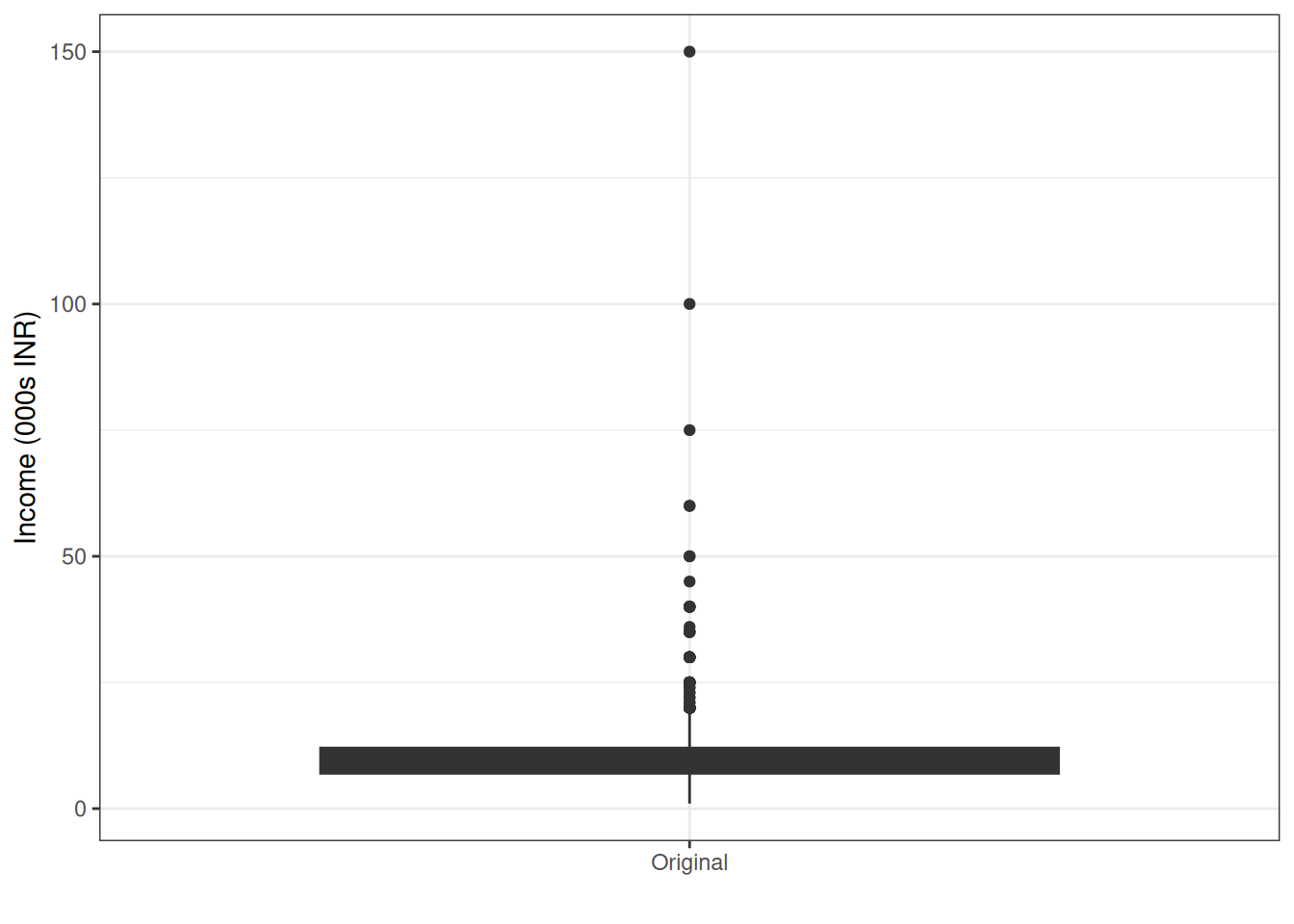

Next, one should inspect the outcome and covariate variables for outlier values and decide what to do about these outliers. Plotting the distribution of the values of each variable (via a histogram or boxplot, for example), or asking your statistical software to produce a “summary” of the variable, are ways of going about this.
To adjudicate about outliers requires substantive knowledge about what reasonable ranges are for the variables. For an age variable of a survey of only adults, for example, ranges from 18 to 85 might be reasonable. If a subject has a reported age of 2 or 1000, for example, this would raise concerns. Similarly, reported salary values outside of the range reasonable for the context that you work in might raise questions. As a note, it’s possible to program your survey software such that values entered must abide by certain rules (for example, percent of the time one spends doing household labor can only be between 0 and 100, inclusive). See guide on 10 Things to Know About Survey Design for more on designing surveys smartly.
If you think a value of a variable is incorrectly coded, you can try to figure out what the correct value was. First, it’s possible to do detective work to discover what the correct value was. Sometimes an enumerator may accidentally add an extra digit to an otherwise correct value, for example. One can follow-up with enumerators to clarify whether or not they made a mistake. Alternatively, one can go back to the source to verify the correct value of the variable for a certain observation. Imagine that an outcome variable is the result of an election, which was coded manually from archival resources or online images. In this case, it is relatively straightforward to return to the original newspaper source and/or image to verify the result of the election for the given observation.
However, much of the time it’s not possible to retrospectively find the correct value of a variable for a given unit. Further, it may not always be clear that the value in question is in fact an incorrect - perhaps there really was a respondent who had an annual salary of 1 million dollars. Many times, best practice is to leave the value alone; editing the value would bias results. In the case that, thanks to contextual knowledge, you are certain that a value has been incorrectly coded and you are unable to locate the correct value, you may consider marking the value as missing. Other times, researchers use techniques like winsorizing a variable. This approach transforms data with the goal of limiting the impact of outliers. Concretely, winsorization changes extreme values to less extreme values. Another approach is to trim outlier values, which means to remove them entirely.
If you choose to make edits to values in your data, you should make sure you’re doing 2 things. First, you should be blind to results and the treatment condition of the observation(s) when you edit or inspect data. See Standard operating procedures for Don Green’s lab at Columbia for more helpful insight on this. Second, you should never completely overwrite the raw data as you make edits. Instead, you should keep a code file that documents exactly the changes you make, and producing a cleaned data file (while retaining the raw data file). This is key to the transparency and reproducibility of your results. One way to organize the data and code for your experiment is to have a raw data file, then the code scripts that clean the data, and the intermediate/final (clean) data that you then run the analysis on. Never overwrite the raw data.
It’s important to note that changing the values of outliers is strongly discouraged when it comes to the outcome variable! In the coding example, we do so with a covariate - income.
6 # Checking for balance on pre-treatment covariates
After inspecting and cleaning treatment assignment, treatment receipt, covariate, and outcome data, it’s crucial to check for balance on pre-treatment covariates between treatment arms. “Balance tests” are a way of providing evidence that your randomization worked as expected. They seek to probe an observable implication of random assignment of treatment: that treatment and control groups look the same, on average, in terms of pre-treatment characteristics.2 Balance tests, which can be implemented in a number of different ways, ask whether imbalances in pre-treatment covariates across different experimental conditions are larger than what would be expected by chance.
The balance test you run depends on your experimental design. In a set-up where you have a binary treatment and all units have the same probability of assignment to treatment, you can run a regression of the treatment assignment variable on your covariates, and run an F-test that tests the null hypothesis that all covariates are jointly 0. The p-value of the F-statistic can be found via randomization inference. If, for example, you conducted a block randomization with treatment probabilities that vary by block, you should adjust for this in the regression specification.
We are interested in the F-test because we care about overall balance of covariates. However, you are likely to come across covariate-by-covariate analyses that conduct t-tests comparing means among control units and treated units. Though this is standard practice, it is undesirable for several reasons. First, it is not unlikely that a covariate will come up as significantly different among treated and control units: due to the often numerous number of tests conducted, statistical significance can arise by chance. Here, it is important to emphasize that if you detect imbalance on a covariate that is significantly different than what would arise by chance, it’s not always cause for panic. Second, this approach treats each covariate as equally important and informative about potential outcomes, rather than taking into account the prognosticness of the covariate. One may consider running equivalence tests instead of conventional balance tests.3
What you expect to see and what to do if it’s okay, good to go
What to do if there’s evidence of imbalance
7 # Checking for differential attrition
Were you unable to measure outcomes for all of your experimental subjects? Sometimes, subjects leave the study or “attrit”, and we’re unable to measure their outcome. In general, missingness of the outcome variable(s) can induce bias in our estimates of causal effects. Read more on attrition, what can lead to it, its consequences and how to address it in 10 Things to Know About Missing Data. We’d like to gain leverage on whether missing data on the outcome is independent of potential outcomes. If we think that it is, the estimator of the average treatment effect is unbiased. If it’s not, we might worry about bias. Further, the more missingness there is, the more the risk of bias.
There main way that researchers probe whether outcome data may be plausibly missing at random is to to examine whether there exists an observable relationship between treatment assignment and missingness of outcomes. The way to do this is to code up a variable that designates whether the outcome variable is missing (1) or not missing (0), and examine whether treatment assignment impacts the propensity for outcome data to be missing. To complement this analysis, researchers generally assess covariate balance between treated and control units who are not missing, or by assess covariate balance between units with missing vs non-missing outcomes.
8 # Adjust estimation procedure according to deviations from planned analysis
Once you have already looked at your data, you may realize that you should complete some analyses differently than you had planned in your PAP. This happens regularly.
One example of this is that researchers sometimes decide to control for a covariate in a regression analysis if they see that it is imbalanced in standard balance tests. This is impossible to know ex-ante, because researchers don’t know what sort of draw they’ll get in their actualized randomization.4 Alternatively, one might realize that
Control for variables upon which imbalance (unlucky draw) Some measurement gets messed up, so dont include it Run an additional model that they hadn’t thought about before; error in judgment in the original PAP; learned more about the technique and this happens If it makes more sense to do this other way and had not thought about it Sometimes, deviations can be around things being underspecified; hadn’t given the details on what they’d do (the transformation not specified ex ante); or 5 category transformation and instead do 2 groups bc data looks lumped into 2 groups; underspecified or guessed wrong
9 # Write replicable code to analyze data
Hopefully this is done w/ PAP But otherwise do now (Don’t actually include code here) List best practice -> point to the replication file of Gaikwad and Nellis (2021) annotations , versions of packages, where to find which tables and figures etc etc should all be noted raw data kept, cleaning file separate, etc
10 # Write up deviations from preanalysis plan and justify
Pre-registered report should exist (so analyze AS pre-registered, even if not good) Cite this in your manuscript As you do analysis, you’ll come up w things that you change Keep a list of what you change; all of these could be highlighted and justified
11 # Example code
In this example, we use data from Gaikwad and Nellis (2021). They employ a door-to-door field experiment in two Indian cities to increase the political inclusion of migrants. The treatment provided intensive assistance in applying for a voter identification card. They conduct a simple randomization where 2306 migrants were either assigned to treatment or control with a 50 percent probability. They look at the impact of the treatment on several outcomes, one of which whether an individual voted in India’s 2019 national election.
Code
library(tidyverse)library(magrittr)library(kableExtra)library(scales)# load in the experimental data from Gaikwad and Nellis (2021)# this code draws heavily on their reproduction code, found in their# supplementary materials here: # https://dataverse.harvard.edu/dataset.xhtml?persistentId=doi:10.7910/DVN/G1JCKKt1_experiment_df <-readRDS("gaikwad-nellis-2021-data-t1-experiment-df.Rds")### step 1 #### inspect the treatment variable# values are 0 and 1# around 50 percent assigned to each condition, consistent with simple randomization# with p = 0.5 for all subjectst1_experiment_df %>%group_by(i_t1) %>%summarise(n =n()) %>%mutate(freq = n /sum(n)) %>%kable()
Code
library(skimr)### step 2 #### outcome and covariate inspection# NOTE: Gaikwad and Nellis (2021) look at the impact of the treatment on several outcomes,# one of which whether an individual voted in India's 2019 national election.# We're choosing to use this one for exposition here.# outcome variable:# turnout in 2019 national election# values of 0 or 1, no strange values# 186 NAs which we'll investigate more later# covariates: # they use 10 of them in their main specification:# 1) lagged outcome (voted previously), 2) whether female,# 3) age, 4) whether muslim, 5) whether SC/ST, 6) whether has primary education,# 7) income, 8) whether married, 9) length of residence, 10) whether owns a home# here, we investigate 3 of them: age, female, and income# transforming income, the authors are interested in 1000 of rupeest1_experiment_df %<>%mutate(b_income_000 = b_income/1000)# age# range 18-88, no NAs# female# range 0-1, no NAs # income# authors are interested in income as 000s of rupees, so we transform the variable# range 1-150, no NAs# there seems to be some extreme outliers# we can summarize the outcome variable, as well as covariates, using the# skim function in the skimr packaget1_experiment_df %>% dplyr::select(e_voted_2019, b_age, b_female, b_income_000) %>%skim()# let's further inspect the income variable to check out outliers t1_experiment_df %>%select(b_income_000) %>%pivot_longer(cols =c("b_income_000"),values_to ="count") %>%ggplot(aes(x =factor(name), y = count, fill =factor(name))) +geom_boxplot() +labs(xlab ="") +scale_fill_grey() +scale_color_grey() +theme_bw() +theme(legend.position="none") +scale_x_discrete(labels =c("Original")) +xlab("") +ylab("Income (000s INR)")
Code

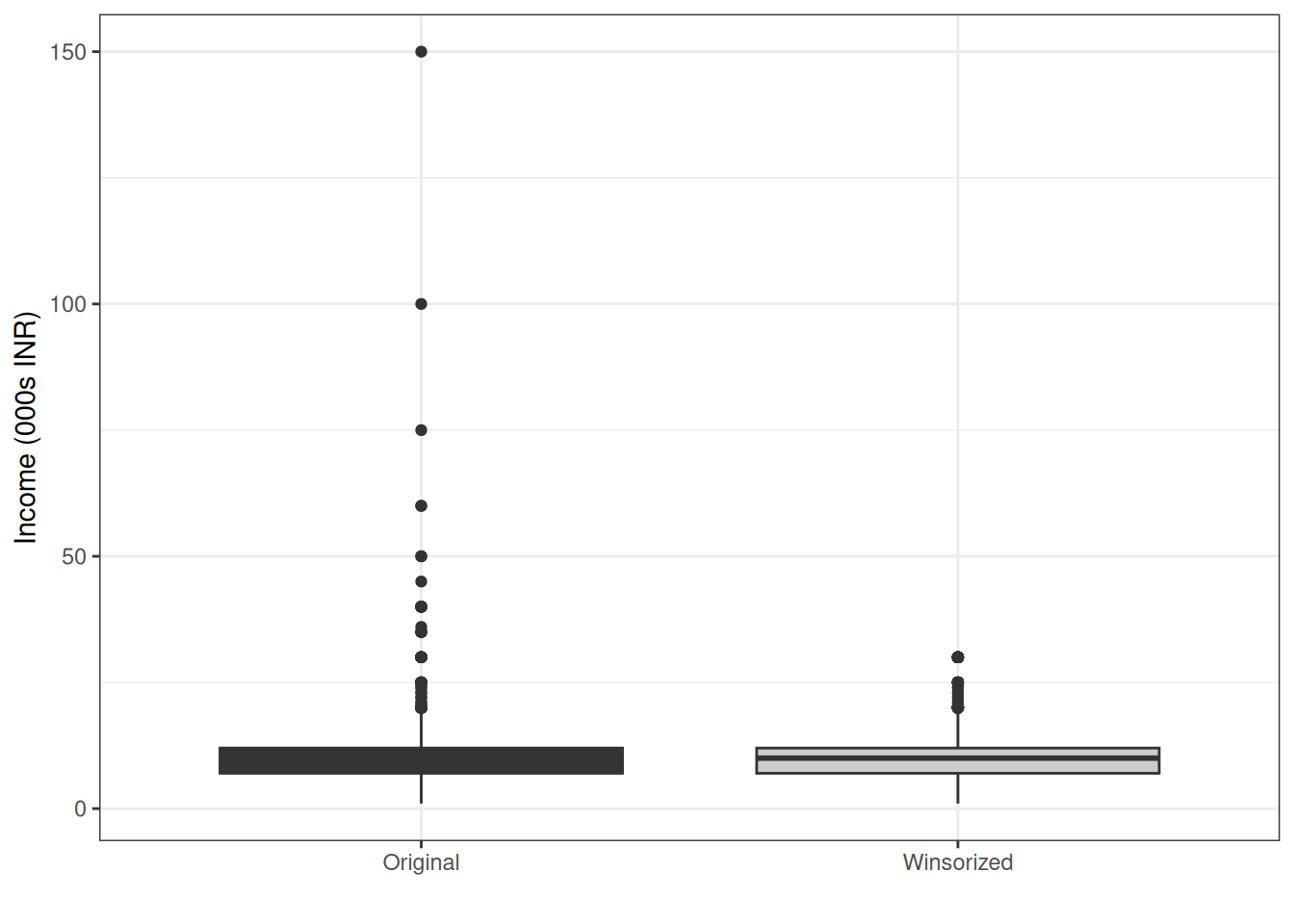

### step 3 #### dealing with outliers# It's important to note that changing the values of outliers is strongly# discouraged when it comes to the outcome variable! # here, we're doing so with a covariate: income# income# as we mentioned before, and as Gaikwad and Nellis (2021) mention in their paper# there are some outliers in the income variable that we want to address# they choose to winsorize it# winsorize income variable# using the "squish" function via the "scales" package# Gaikwad and Nellis winsorize by setting all values higher than the # 99th percentile at the 99th percentile t1_experiment_df %<>%mutate(b_income_000_winsorized =squish(b_income_000, quantile(b_income_000, c(0, .99))))# inspect comparison of distributions of original vs. winsorized variable t1_experiment_df %>%select(b_income_000, b_income_000_winsorized) %>%pivot_longer(cols =c("b_income_000", "b_income_000_winsorized"),values_to ="count") %>%ggplot(aes(x =factor(name), y = count, fill =factor(name)))+geom_boxplot() +labs(xlab ="") +scale_fill_grey() +scale_color_grey() +theme_bw() +theme(legend.position="none") +scale_x_discrete(labels =c("Original", "Winsorized")) +xlab("") +ylab("Income (000s INR)")
Code
### step 4 #### checking for imbalance# Gaikwad and Nellis inspect balance on a number of additional variables,# which we include below# create a vector of variable namesnames <-list(# experimental covariates"b_female"="Female","b_age"="Age","b_muslim"="Muslim","b_sc_st"="SC/ST","b_primary_edu"="Primary education","b_income_000_OUTLIER_FIXED"="Income (INR 000s)","b_married"="Married","b_length_residence"="Length of residence in city","b_owns_home"="Owns home in city",# lagged DVs"b_not_voted_previously"="Hadn't voted previously","b_vote_mc_elecs_how_likely"="How likely to vote in city if registered","b_political_interest"="Political interest","b_political_efficacy"="Sense of political efficacy","b_political_trust"="Political trust index","b_inter_ethnic_tolerance_meal"="Shared meal with non-coethnic",# summary variables"b_has_village_voter_id"="Has hometown voter ID","b_pol_active_village"="Returned to vote in hometown","b_more_at_home_village"="More at home in hometown","b_kms_to_home"="Straight-line distance to home district","b_still_gets_village_schemes"="Still receives hometown schemes","b_owns_village_property"="Owns hometown property")# we regress the treatment indicator on the covariates above# using lm_robust we get robust standard errors # TODO, implement the balance test after hearing back from others# first, RI# declare randomization library(randomizr)library(ri2)# rename Z as treatment variablet1_experiment_df %<>%mutate(Z = i_t1)N <-nrow(t1_experiment_df)simple_dec <-declare_ra(N = N, simple =TRUE)sims <-10set.seed(343)balance_fun <-function(data) {summary(lm_robust(Z ~ b_owns_village_property + b_has_village_voter_id, data = data))$fstatistic[1]}ri_out <-conduct_ri(test_function = balance_fun,declaration = simple_dec,data = t1_experiment_df,sims = sims )summary(ri_out)plot(ri_out)##### all below needs to be revisited after various others responses' on the # best test statistic## do we get the same thing - running the 3 different versions we've come across # first wayfstat1_not_robust_SE <-summary(lm(Z ~ b_owns_village_property + b_has_village_voter_id, data = t1_experiment_df))$f[1]# second wayfit <-lm(Z ~ b_owns_village_property + b_has_village_voter_id, singular.ok =FALSE, data = t1_experiment_df)Rbeta.hat <-coef(fit)[-1]RVR <-vcovHC(fit, type <-'HC0')[-1,-1]W_obs_SOP_green <-as.numeric(Rbeta.hat %*%solve(RVR, Rbeta.hat))# third wayfstat_robust_SE <-summary(lm_robust(Z ~ b_owns_village_property + b_has_village_voter_id, data = t1_experiment_df))$fstatistic[1]fstat1_not_robust_SEW_obs_SOP_greenfstat_robust_SE# to ask, whether or not to have robust lm in order to get the test stat# look at donald green SOP# versus what is shown in the ri guide# need to wait to hear back about this part# t1bal <- # lm(as.formula(paste("i_t1 ~", paste(c(names(names)), collapse = "+"))),# data = t1_experiment_df)# # Rbeta.hat <- coef(t1bal)[-1]# RVR <- vcovHC(t1bal, type <- 'HC0')[-1,-1]# W_obs <- as.numeric(Rbeta.hat %*% solve(RVR, Rbeta.hat))
Code
### step 4 #### checking for attritionlibrary(stargazer)# as we showed above, the outcome variable (that we are working with in this example)# has some missing entries, as Gaikwad and Nellis (2021) point out and address in # their paper# the code below shows that there are 186 missing observations, reflecting a # rate of completeness of around 92 % t1_experiment_df %>% dplyr::select(e_voted_2019) %>%skim()# is attrition different across treatment conditions?# we can inspect this descriptively, comparing a variable# for missingness across treatment conditions# at a quick glance, rates look similar across treatment and controlt1_experiment_df %>%group_by(i_t1, i_attrition) %>%summarise(n =n()) %>%mutate(freq = n /sum(n))# compare attrition across T1 treatment arms using OLS regression# it doesn't appear that there is a big threat attrition being related to treatment assignmentt1attr1 <-lm(i_attrition ~ i_t1, data = t1_experiment_df)# print the table, code from reproduction materials of Gaikwad and Nellis (2021)stargazer(t1attr1, se =starprep(t1attr1), type='latex',title ="Comparison of attrition rates across T1 treatment arms using OLS regression. The analysis includes all subjects randomized to T1 treatment or control. Robust standard errors in parentheses.",dep.var.labels ="Attrition Indicator",single.row =TRUE,omit.stat =c("ser", "f", "rsq"),omit =c("Constant"),covariate.labels ="Assigned to T1 treatment",font.size ="small",header =FALSE,float.env ="table",notes.label ="")## TODO: add in balance (missingness on treatment by covariate interaction, then F stat?)# need to wait to hear back about this part
Gaikwad, Nikhar, and Gareth Nellis. 2021. “Overcoming the Political Exclusion of Migrants: Theory and Experimental Evidence from India.”American Political Science Review 115 (4): 1129–46.
Hartman, Erin, and F. Daniel Hidalgo. 2018. “An Equivalence Approach to Balance and Placebo Tests.”American Journal of Political Science 62 (4): 1129–46.
Footnotes
Note: the Bernoulli coin need not be defined by 50-50 chances; the researcher defines ex-ante the probability of receiving treatment versus control, which could be 70-30 instead.↩︎
See the methods guide on balance tests for more on this. However, the key (unobservable) assumption that we seek to test is whether or not treatment assignment is independent of potential outcomes.↩︎
Hartman and Hidalgo (2018) write on the meaning and implications of equivalence tests, vis-a-vis conventional balance tests.↩︎
